Shock Test System Supporting Windows 7 and 10 Operating Systems with USB 2.0 Interface for Data Communication and Test Management

Shock Test System Supporting Windows 7 and 10 Operating Systems with USB 2.0 Interface for Data Communication and Test Management
Shock Test System Supporting Windows 7 and 10 Operating Systems with USB 2.0 Interface for Data Communication and Test Management Shock Test System Supporting Windows 7 and 10 Operating Systems with USB 2.0 Interface for Data Communication and Test Management

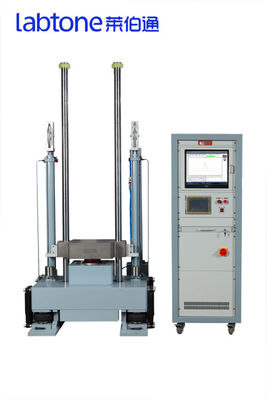

Großes Bild :  Shock Test System Supporting Windows 7 and 10 Operating Systems with USB 2.0 Interface for Data Communication and Test Management

Produktdetails:
Herkunftsort: China
Markenname: LABTONE
Zertifizierung: CE, ISO
Modellnummer: SKT30
Zahlung und Versand AGB:
Min Bestellmenge: 1 Satz
Preis: verhandelbar
Verpackung Informationen: Internationaler Holzkasten
Lieferzeit: 45 Arbeitstage
Zahlungsbedingungen: T/T
Versorgungsmaterial-Fähigkeit: 15 Sätze / Monat
Kontakt

Shock Test System Supporting Windows 7 and 10 Operating Systems with USB 2.0 Interface for Data Communication and Test Management

Beschreibung
Modell: SKT30 Schockimpuls: halber Sinus
Beschleunigungsstrecke (m/s2): 20----600 Impulsdauerstrecke (Frau): 0.2~11
Tischgröße: 40X40cm Name: Schlagprobe-System führt mechanische Schlagprobe 175g 3ms des Tests der Batterie-IEC62133 durch
Quadrat: Dauer 6-18ms Max Acceleraitons 150G Leistung: Hydraulisch
Hervorheben:

Shock test system with USB 2.0

,

Windows compatible shock test system

,

Shock test system for data communication

Shock Test System Performs Mechanical Shock Test 175g 3ms of IEC62133 Battery Test



Product description

The SKT30  is applicable for Mobile phones, computers, optical components, connectors, batteries, etc.

The equipment conforms to such testing specifications as IEC62133,MIL-STD-202F,MIL STD 810, ASTM D3331, IEC60068-2-27,75 EIA TP-27B, ANSI-VITA 47-2006, GB/T2423-2008, GJB150, GJB360, GJB548, GJB1217, CUSTOM SPECS etc.

Specification





Main parameters of the shock tester
Table Size 400 × 400 mm
Max. Specimen Weight 30KG
Peak acceleration Half sine wave: 20 to 600G
Pulse duration Half sine wave: 1 to 30 ms

Pulse Waveform

*With Optional Programmers

Half Sine

Trapezoidal *

Terminal Peak Sawtooth*
Equipment dimensions 79×80× 210cm
Equipment weight 1050 kg
Data analysis & acquisition systems
Input channels 2 channels
Sampling frequency 192KHz
Pulse duration As narrow as 0.1ms
Max. acceleration 100,000G
Communication interface USB2.0
Supportive standard ISO, UN38.3,MIL-STD-810, user defined
Operating system Microsoft Windows 7/10
Accelerometer
Model C02A01
Output mode Charge type
Sensitivity 10 pC/g
Frequency range 0.5 to 8KHz
Acceleration range ±2000G



Standard Shock Test systems



Model SKT30 SKT50 SKT100 SKT200 SKT300 SKT600 SKT1000
Table Size (cm) 40 x 40 50 x 60 70 x 80 100 x 100 120 x 120 150 x 150 200 x 200
Max. Specimen Weight(kg) 30 50 100 200 300 600 1000



Max.

Acceleration (G)

 Half Sine 600 600 600 500 500 300 300
Saw-tooth 100 100 100 100 100 100 100
Square 　 150 150 150 100 100 100



Pulse duration

(ms)

 Half Sine 30—0.5 30～1 30～1 30～2 20～3 20～3 20～3
Saw-tooth 18～6 18～6 18～6 18～6 18～6 16～6 18～6
Square 　 30～6 30～6 30～6 30～6 30～6 30～6
Controller cabinet dimension(cm) W55*D50*H80
Machine weight(Kg) 1900 2300 3200 4200 8500 15500 21500
Power supply 3(phase) AC380V 50/60Hz Compressed air 0.5～0.8MPa
Standards GB/T2423-2008 GJB1217 GJB360.23 GJB150 GJB548 MIL-STD-202F IEC-68-2-27 MIL-STD-883E MIL-STD-810F ISTA UL



Purpose of Shock Testing

  • The purpose of shock testing is to determine the fragility of products.
  • Ruggedness is a desirable product characteristic.
  • A certain amount of ruggedness is necessary for the product's proper functioning.
  • Manual handling during distribution normally will "exceed" product ruggedness so protective packaging is usually required
  • Shock testing can be useful to improve the ruggedness of designs and add value to the product
  • Traditional shock fragility testing used SRS techniques because we lacked knowledge of what inputs were likely.
  • SRS was well established in architecture and the building industry.

Shock Test System Supporting Windows 7 and 10 Operating Systems with USB 2.0 Interface for Data Communication and Test Management 0



Company profile:



Labtone Test Equipment Co., Ltd. is a +15 year China manufacture of reliable, cost-effective equipment. Our superior products mainly include Vibration Test Systems, Shock Test Systems, Bump Test Systems, Drop Tester, Packaging Transportation Simulators, and Combined Environmental Test Chambers.



Labtone started a business in 2002 in a plant located in Shenzhen and moved to our new, expanded 6,000 square meter facility in Dongguan, Guangdong in 2015. Today, our products are found around the world in electronics, automotive, aerospace, telecommunication, optoelectronics instrument, and industrial machinery applications. Our experience and commitment to new product development have resulted in products that are easy to use, accurate and designed for decades of service.



Labtone products carry a one-year(12months) warranty. We provide comprehensive factory services and supports, technical literature, manuals, and guides as well as having qualified staff and experts to solve your problems.

We sincerely invite you to visit our factory.



Shock Test System Supporting Windows 7 and 10 Operating Systems with USB 2.0 Interface for Data Communication and Test Management 1



Shock Test System Supporting Windows 7 and 10 Operating Systems with USB 2.0 Interface for Data Communication and Test Management 2Shock Test System Supporting Windows 7 and 10 Operating Systems with USB 2.0 Interface for Data Communication and Test Management 3

Größe und Tag:

Schlagprobe-Maschine,

Mechanische Schlagprobe,

Schlagprobe-Ausrüstung
