Shock Test System for Batteries and Phone Cells High-Acceleration and Precise Testing Compliant with UN38.3 and IEC62281

Shock Test System for Batteries and Phone Cells High-Acceleration and Precise Testing Compliant with UN38.3 and IEC62281
Shock Test System for Batteries and Phone Cells High-Acceleration and Precise Testing Compliant with UN38.3 and IEC62281 Shock Test System for Batteries and Phone Cells High-Acceleration and Precise Testing Compliant with UN38.3 and IEC62281 Shock Test System for Batteries and Phone Cells High-Acceleration and Precise Testing Compliant with UN38.3 and IEC62281

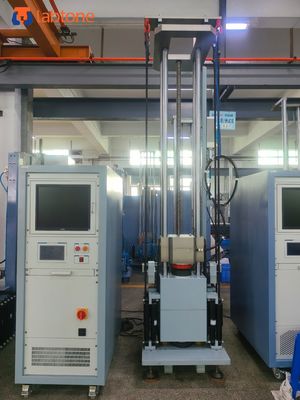

Großes Bild :  Shock Test System for Batteries and Phone Cells High-Acceleration and Precise Testing Compliant with UN38.3 and IEC62281

Produktdetails:
Herkunftsort: China
Markenname: LABTONE
Zertifizierung: CE, ISO
Modellnummer: G-HSKT10
Zahlung und Versand AGB:
Min Bestellmenge: 1 Satz
Preis: verhandelbar
Verpackung Informationen: Internationaler Holzkasten
Lieferzeit: 45 Arbeitstage
Zahlungsbedingungen: T/T
Versorgungsmaterial-Fähigkeit: 15 Sätze / Monat
Kontakt

Shock Test System for Batteries and Phone Cells High-Acceleration and Precise Testing Compliant with UN38.3 and IEC62281

Beschreibung
Modell: G-HSKT10 Tischgröße: 2000 x 2000 mm
Höchstgewicht des Exemplars (Kilogramm): 10 Schockimpuls: halber Sinus
Beschleunigungsstrecke (m/s2): 20----2000 Impulsdauerstrecke (Frau): 0.2~18
Hervorheben:

Shock test system for batteries

,

High-acceleration shock test system

,

UN38.3 compliant shock test system

UN38.3 and IEC62281 Standard Shock Test System for Batteris and Phone Cells





Product description



The precise-type high-acceleration shock tester can provide all half-sine short wave specification specified in JESD22-B110. To meet them, merely change different shock rubber-pad on shock seat. The wave is complete with high repeatability, able to provide user accurate test result.
Conform to different test specs such as JESD22-B110 and IEC spec.

  • TouchTest Shock 2 Controller for easy and safe operation
  • Forged aluminum table design for generating high acceleration shock pulses
  • Acceleration Kit to increase velocity change performance
  • Electric hoist lifting and positioning system enables precise drop repeatability
  • Floating Seismic Base to limit the shock energy that transmits to the floor
  • Full range of applications training programs available
  • Worldwide Customer Service department





Shock testing systems Specifications



Model SKT30 SKT50 SKT100 SKT200 SKT300 SKT600 SKT1000
Table size (cm) 40*40 50*60 70*80 100*100 120*120 150*150 200*200
Maximum Specimen Weight(Kg) 30 50 100 200 300 600 1000
Max acceleration(G) half sine 600 600 600 500 500 300 300
saw-tooth waveform 100 100 100 100 100 100 100
square 150 150 150 150 100 100 100
Pulse Duration (ms) half sine 40—0.2 40~1 40~1 30~2 20~3 20~3 20~3
saw-tooth waveform 18~6 18~6 18~6 18~6 18~6 18~6 18~6
square   30~6 30~6 30~6 30~6 30~6 30~6
Machine Dimension(cm) 120*110*245 130*140*260 130*120*260 150*130*260 200*160*300 230*180*310 250*220*310
Controller cabinet Dimension(cm) W55*D50*H80
Machine Weight(Kg) 1900 2300 3200 4200 8500 15500 19500
Utility 3-phase AC380V 50/60Hz 0.5~0.8MPa
Requirements
Conforming standards GB/T2423-2008 GJB1217 GJB360.23 GJB150 GJB548 MIL-STD-202F IEC-68-2-27 MIL-STD-883E MIL-STD-810F ISTA UL

High acceleration shock testing systems specifications:
Model HSKT10 HSKT10 GSKT10D
Table size (cm) 15*15 20*20 20*20
Shock pulse Half sine
Maximum Specimen Weight(Kg) 5 10 10
Acceleration Range(G) 20 ~ 1500 20 ~ 1500 20 ~ 10000
Pulse Duration (ms) 0.5~11 0.5~11 0.2~11
Machine Dimension(cm) 60*55*250 60*55*250 90*70*275
Utility
Requirements		 AC220V 50Hz 5A,Air pressure: more than 0.5Mpa
Machine Weight(Kg) 600 650 110



Company Profile:


Labtone Test Equipment Co., Ltd. is a +15 year China manufacture of reliable, cost-effective equipments. Our superior products mainly include: Vibration Test Systems, Shock Test Systems, Bump Test Systems, Drop Tester, Packaging Transportation Simulators, and Combined Environmental Test Chambers.



Labtone started business in 2002 in a plant located in Shenzhen and moved to our new, expanded 6,000 square meter facility in Dongguan, Guangdong in 2015. Today, our products are found around the world in electronics, automotive, aerospace, telecommunication, optoelectronics instrument and industrial machinery applications. Our experience and commitment to new product development has resulted in products that are easy to use, accurate and designed for decades of service.



Labtone products carry a one-year(12months) warranty. We provide comprehensive factory services and supports, technical literatures, manuals and guides as well as having qualified staffs and experts to solve your problems.



We sincerely invite you to visit our factory





Warranty: 12 months from delivery, lifelong time maintainance.

After-sale service: feedback within 4-8 hours after get the call or email.

Service: OEM, ODM



Certificate: China official third-party calibration report / CE Certification



Welcome to contact us with your vibration test inquiry.
